[캔통신] Influx Module Analysis 기능 별 정리

FAMTECH 2024. 1. 22. 14:25



목차



    "관련제품 문의는 로고 클릭 또는 공지사항의 연락처를 통해 하실 수 있습니다."







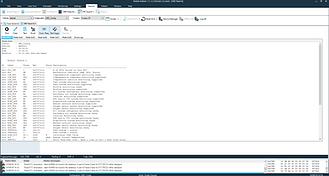

    Module Analyser





    Module Analyser is a 5 in 1 easy to use CAN bus analyser with the following advantages:



    • CAN and LIN monitoring via DBC/LDF/Fibex files
    • Automotive OBD ISO15765 Scan tool and UDS ISO14229
    • J1939
    • Integrated ODX/MDX editor
    • Data acquisition and logging




    Standard OBD Functions ISO15765
    Lite
    ST
    Plus
    Monitoring powertrain diagnostic data (Mode 1)
    YES
    YES
    YES
    Retrieving freeze frame diagnostic data (Mode 2)
    YES
    YES
    YES
    Reading emissions related diagnostic trouble codes (Modes 3,4 & 7)
    YES
    YES
    YES
    Retrieving test results for non-continuously monitored systems (Mode 6)
    YES
    YES
    YES
    Manufacture specific diagnostic trouble Codes (Service 18)
    YES
    YES
    YES
    Read by Identifier (Service 21)
    YES
    YES
    YES
    Message Constructor (Configurable ISO15765 messages)
    YES
    YES
    YES
    Module scanning (Benchmarking – Service 21)
    YES
    YES
    YES

    UDS Extended Services ISO14229
    Lite
    ST
    Plus
    Module scanning (Benchmarking – Service 22)
    YES
    YES
    YES
    Message Constructor (Configurable ISO14229 messages)
    YES
    YES
    YES
    Routine Control (Service 31)
    No
    No
    YES
    Write data by identifier (Service 2E)
    No
    No
    YES
    Fast data acquisition (Service 2C & 2A)
    No
    No
    YES
    Read memory by address (Service 23)
    No
    No
    YES
    Read by identifier (Service 22)
    No
    YES
    YES
    Manufacturer specific diagnostic trouble codes (Mode 19
    No
    YES
    YES

    Data Management Lite ST Plus
    Fibex File import
    NO
    NO
    YES
    LDF File import
    YES
    YES
    YES
    DBC File import (including editor)
    YES
    YES
    YES
    ASAM A2L import
    NO
    NO
    YES
    ODX/MDX/GDX compatible (import/export/edit)
    YES
    YES
    YES
    User configurable data base for individual modules
    YES
    YES
    YES

    Included Diagnostic Databases
    Lite
    ST
    Plus
    J1939 database
    NO
    NO
    YES
    SAE data DTC’s (<P1000)
    NO
    YES
    YES
    OBD data (Service 1 to 10)
    NO
    YES
    YES

    Security file support & management
    Lite
    ST
    Plus
    Preconfigured Security Library (*OEM version only)
    NO
    NO
    YES
    Security file manager
    NO
    NO
    YES
    Unlock ECU tool
    NO
    NO
    YES

    Hardware Compatibility Lite ST Plus
    J2534 Pass thru compliant hardware (Intrepid/Mongoose etc)
    NO
    YES
    YES
    CANdo CAN interface
    NO
    YES
    YES
    Kvaser LIN interface
    NO
    YES
    YES
    Kvaser CAN interface (> 1 CAN bus)
    NO
    NO
    YES
    Kvaser CAN interface (one CAN bus only)
    NO
    YES
    YES
    Rebel data loggers
    YES
    YES
    YES



    CAN and LIN Functions Lite ST Plus
    Multiple CAN bus support (only with compatible hardware devices)
    NO
    NO
    YES
    CAN Monitor/Trace Replay
    YES
    YES
    YES
    Message Constructor (Configurable periodic CAN messages)
    YES
    YES
    YES
    LIN Signals viewer
    YES
    YES
    YES
    CAN Signals viewer
    YES
    YES
    YES
    LIN Trace monitor
    YES
    YES
    YES
    CAN Trace monitor (Configurable Filters)
    YES
    YES
    YES
    Network Statistics (only with Kvaser devices)
    NO
    YES
    YES
    LIN LDF File Editor
    YES
    YES
    YES
    CAN DBC File Editor
    YES
    YES
    YES

    Data Visualisation Lite ST Plus
    Diagnostic Trouble Codes and Freeze frame reports
    YES
    YES
    YES
    Report by full OBD Scan (Mode 1 to Mode 10)
    YES
    YES
    YES
    Vehicle history (simple/expanded)
    YES
    YES
    YES



    Data Visualisation Lite ST Plus
    User Configurable Screens (Save/Load)
    YES
    YES
    YES
    Dials/LED’s
    YES
    YES
    YES
    CAN Trace – List Mode
    YES
    YES
    YES
    Graphical Oscilloscope (Real Time)
    YES
    YES
    YES



    Complex UDS Functions
    Lite
    ST
    Plus
    Module reprogramming/Re-flashing via ISO14229
    NO
    NO
    YES
    Simultaneous multiple CAN bus Communication (with compatible devices)
    NO
    NO
    YES
    Simultaneous multiple Module UDS Communication
    NO
    NO
    YES

    Data Formats Lite ST Plus
    Recorded data (MDF, MAT, CSV)
    YES
    YES
    YES
    CAN Trace (ASC)
    YES
    YES
    YES
